Clear View Fence Aluminium Fabrications

Secure Security Fencing

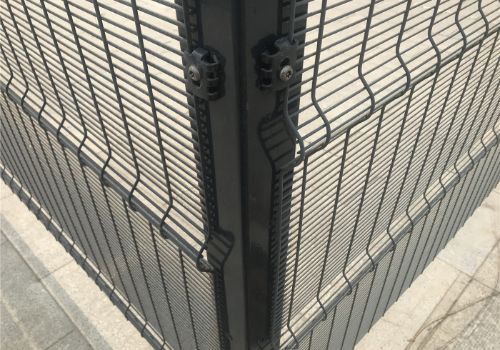

Clear View Fencing is a type of security welded wire mesh fence barrier designed to bring maximum perimeter protection and excellent visibility through the mesh. V-Bends in the clear view fence panels create strength and rigidity. As a high security barrier, clear view security fencing forms a physical and psychological deterrent to unauthorized entry and break-ins.

Our high density mesh clear view Fencing is the most common perimeter barrier or control for architectural profession and defense protection. We design three style standard fence panels according to different secure grade: high security, medium security, and low security.

Table-1: Clear view fencing panels options
Security options	Aperture	Vertical Wire Thickness	Horizontal Thickness	Features
High Security	76 mm × 12.5 mm	4 mm	3.5 mm	most secure, anti-cut, anti-climb, highly visible
Medium Security	76 mm × 25 mm	4 mm	4 mm	anti-cut, and highly visible
Low Security	76 mm × 50 mm	4 mm	4 mm	anti-cut, and highly visible, cost effective

Table-1: Clear view fencing panels options

Security options

Aperture

Vertical Wire Thickness

Horizontal Thickness

Features

High Security

76 mm × 12.5 mm

4 mm

3.5 mm

most secure, anti-cut, anti-climb, highly visible

Medium Security

76 mm × 25 mm

4 mm

anti-cut, and highly visible

Low Security

76 mm × 50 mm

4 mm

anti-cut, and highly visible, cost effective

Table-2: Clear view fencing installation posts and clamps
Fence height	Panel size	Posts section	Post length	No.of bends	No. of clamps
1800 mm	1800 mm × 2515 mm	60 × 60 × 2 mm	2400 mm	4	4
2000 mm	2000 mm × 2515 mm	60 × 60 × 2 mm	2600 mm	4	4
2200 mm	2200 mm × 2515 mm	60 × 60 × 2 mm	2800 mm	4	4
2400 mm	2400 mm × 2515 mm	80 × 80 × 3 mm	3000 mm	4	4
3000 mm	3000 mm × 2515 mm	80 × 80 × 3 mm	3600 mm	5	5

Table-2: Clear view fencing installation posts and clamps

Fence height

Panel size

Posts section

Post length

No.of bends

No. of clamps

1800 mm

1800 mm × 2515 mm

60 × 60 × 2 mm

2400 mm

2000 mm

2000 mm × 2515 mm

60 × 60 × 2 mm

2600 mm

2200 mm

2200 mm × 2515 mm

60 × 60 × 2 mm

2800 mm

2400 mm

2400 mm × 2515 mm

80 × 80 × 3 mm

3000 mm

3000 mm × 2515 mm

80 × 80 × 3 mm

3600 mm

Clear View Fence Advantages

Anti-climb, anti-cut, and 85%-90% see-thru

HD Galv and polyester coated for corrosion and rust resistance

Available in various security grades

V-Bends create added strength and rigidity

Panels fixed to square tube posts for maximum security and strength

Professional installation teams

Suitable Applications

Warehousing isolation, workshop segmentation

Road, railway, airport fence

Prison, military security fence

Medical facilities, educational school, recreational fencing

Residential areas, business district, government agencies, fence or gates

Industrial area, farm house fence

Suitable for flat or slope areas
